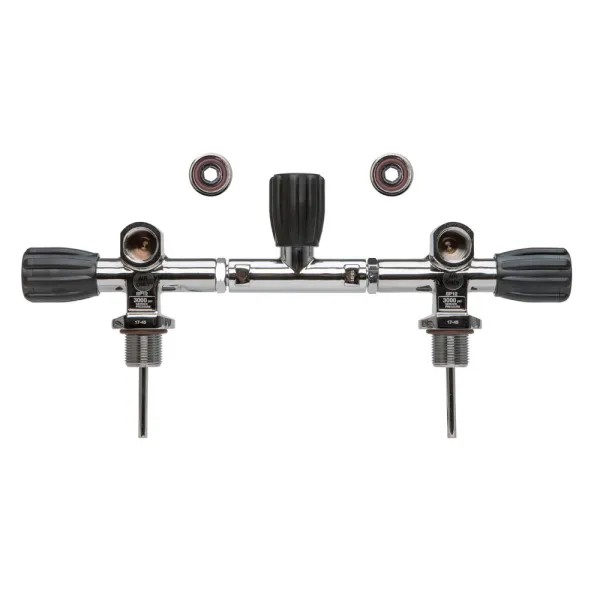

Thermo Twin Isolation Pro Valve

PRO – DIN/Yoke with removable spin-out insert
Center-to-center distance: 215 mm (8.46”) +/- 5 mm (0.2”)
3/4”-14 NPSM standard inlet threads
High gas flow for optimum regulator performance
On/Off seat built from high strength brass with nylon seat and teflon plated for years of smooth operation
One-piece safety assembly protected within the body of the valve
Traditional copper crush washer sealed bonnet
Modular access plugs (R/L) included for use as single valves
Screw-in dip tube with hex tighten feature
